TAA2761A
dual OP Amp -
int.Compensation

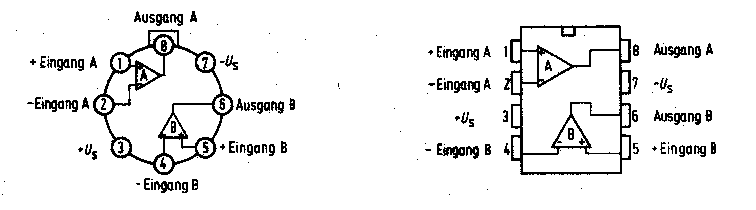

Pinbelegung ohne Gewähr!
Part Number = TAA2761A
Manufacturer Name = Infineon Technologies
Description = Dual General Purpose Op Amp
Input Bias Current Max. (A) = 1.0u
V(io) Max. (V) = 6.0m
I(io) Max. (A) = 300n
Com Mode Inp Range (VICR) = 27
Input Resistance Typ. (Ohms) = 200k
Temp Coef. of VIO = 6.0u
P(D) Max.(W) Power Dissipation = 45m
Nom. Supp (V) = 15
Status = Discontinued
Package = DIP
Pins = 8 |
|
|
