2016/6116/9128 - 2048x8 bit Static RAM |
|
 |
Description
The 2016/6116 series of
Static RAMs are 16,384 bit memories organized as 2,048 words by 8 bits
and operates on a single +5V supply. 2016's and equivalents are
generally NMOS or MOS process parts, where the 6116 and compatibles
are built from CMOS technology. All provide three state outputs, are
TTL compatible, and allow for direct interfacing with common system
bus structures.
-
Access Time 25 to 450ns
depending on part speed grade
-
Fully TTL compatible
-
Three-State Outputs
-
Single Supply (Vcc =
+5V +-10%)
-
Fully Static
Operation, no clock or refreshing required
-
Current varies from
10-100mA, CMOS versions are generally lower power
-
Standby power (deselected
chip) varies from 1-100uA
|

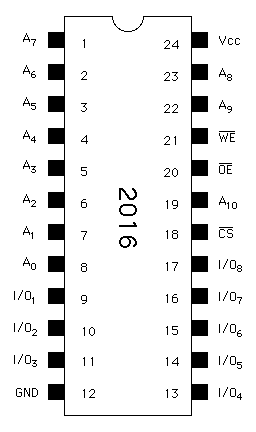

Pin Names
A0 - A10
Address Inputs
I/O1 - I/O8
Data Input/Outputs
CS*
Chip Select Input (Active LOW)
WE*
Write Enable Input (Active LOW)
OE*
Output Enable Input (Active LOW)
Vcc
Power (+5Vdc)
GND
Ground (0Vdc)
Operating Characteristics
Vcc = 5V +- 5%
GND = 0V
Supply Current = 10 to 100mA
depending on manufacturer and fabrication process
Read Timing (Standard
6116-90)
Chip Select Access Time
= 90ns min
Chip Deselect Access Time
= 40ns max
Write Timing (Standard
Grade)
Write Cycle Time
= 90ns min
Write Pulse Width
= 55ns min
Address Setup Prior to Write
= 0ns
Chip Select to End of Write
= 55ns min
Write Recovery Time
= 0ns |
